Intelligent Attached Lifting Scaffold | Modular External Wall Lifting Protection Frame

SKU:
Availability:

Quantity:



Intelligent attached lifting scaffolding, the preferred safety choice for high-rise exterior wall construction, special overall lifting climbing frame for high-rise and super high-rise buildings
Inquire Add to Basket

Product Introduction

Core Technical Parameters

Core Product Advantages

Product Comparison (Climbing Scaffolding VS Traditional Scaffolding)

Scope of Application

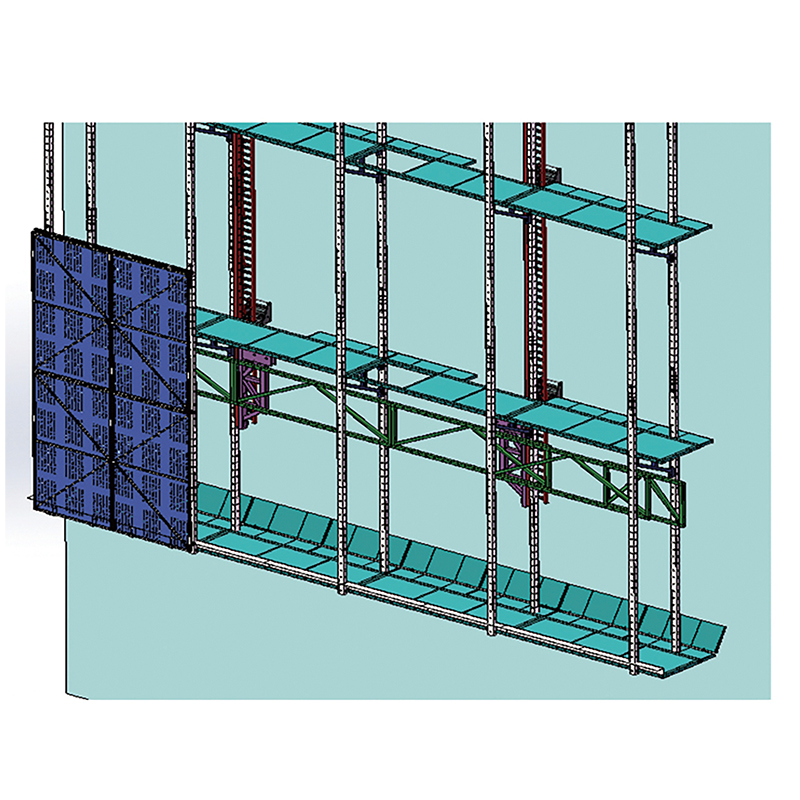

The Intelligent Attached Lifting Scaffold is a mechanized safety operation system for external wall construction tailored to industrialized modern building construction, iteratively developed for facade construction of high-rise and super high-rise buildings. Fixed and hung on building shear walls, beams and columns via special attached anchor supports, the equipment is equipped with an intelligent synchronous electric lifting system to realize smooth integral climbing and accurate lowering of the frame body.

Compared with traditional ground-mounted scaffolding and cantilever scaffolding, the intelligent climbing frame completely eliminates massive scattered steel tubes and repeated erection & dismantling procedures. It only needs one-time assembly on the ground floor, then automatically lifts synchronously with the main floors. Adopting a fully enclosed three-dimensional protective structure, the equipment realizes full-process mechanized and intelligent operation, with all-round advantages in safety protection level, construction efficiency and civilized construction effect over conventional scaffolds.

Widely applicable to various prefabricated buildings, commercial buildings and residential renovation projects, it covers all external wall construction procedures including structural construction, masonry, plastering, thermal insulation, painting and curtain wall installation. Currently, it serves as a core standard equipment for standardized construction safety, green construction, cost reduction and quality improvement in the construction industry.

Item	Standard Parameters
Main Frame Material	High-quality hot-dip galvanized rectangular tubes welded with high-strength structural steel, overall rust and corrosion resistance
Lifting System	Electric synchronous lifting unit + integrated intelligent control cabinet, supports one-key integral lifting/lowering and independent fine-tuning of single spans
Attachment & Fixation	Through-wall attached supports, anti-fall devices, positioning and load relief
Protection Structure	Fully enclosed protection with steel punched mesh / dense mesh
Anti-fall Configuration	Automatic anti-fall device, anti-overturning device, limit alarm
Lifting Speed	Uniform and stable lifting, synchronous operation on floors
Applicable Buildings	High-rises, super high-rises, prefabricated buildings, shear wall structures and buildings with irregular facades
Recyclable Usage	Reusable for multiple projects, easy to assemble and disassemble

Multi-Layered Three-Dimensional Safety Protection Greatly Reduces High-Altitude Operation Risks

The whole machine adopts dual mechanical & electrical safety guarantee systems with interlocked multi-protection functions: independent fall arrest braking, lateral anti-overturning, intelligent load monitoring, power-off self-locking and over-travel limiting. Hidden dangers such as frame overturning, falling and offset are fully eliminated from hardware structure to intelligent control systems. The fully enclosed steel plate barrier completely prevents falling debris from heights, raising on-site construction safety standards and enabling smooth passing of safety supervision inspections at all levels.

Automatic Intelligent Climbing Streamlines Procedures & Shortens Construction Cycles

Breaking the cumbersome layer-by-layer erection and dismantling mode of traditional scaffolding, the frame climbs automatically throughout the whole project after one single assembly. It advances synchronously with the main structure without occupying tower crane hoisting resources. External wall work and internal construction can be carried out in parallel, drastically cutting scaffold construction duration and accelerating overall project delivery progress.

Lower Comprehensive Costs with Obvious Cost-Saving Effects for Mass Projects

Massive consumption of steel tubes, couplers and scaffold planks is eliminated, sharply reducing labor costs for high-altitude erection and dismantling. The equipment boasts outstanding durability and low abrasion, supporting cross-project cyclic turnover with excellent residual value. For contiguous residential and large-scale development projects, its total investment is far lower than ground-mounted and cantilever scaffolding, delivering prominent long-term economic benefits.

Fully Enclosed Civilized Construction Compliant with Green Site Standards

The fully enclosed structure effectively suppresses construction dust diffusion and cuts operation noise, keeping construction sites tidy without piled disorderly pipes. It fully meets assessment requirements of urban dust control, civilized construction sites and green buildings, greatly upgrading the standardized construction image of projects.

Strong Structural Adaptability Compatible with Complex Facades

Highly flexible modular combined design fits standard shear walls, bay windows with concave-convex surfaces, hollow balconies, sky corridors and other irregular building facades. Featuring stable hanging performance and excellent wind resistance, the equipment maintains stable working status in rainy and windy weather, adapting to the full-cycle construction of external walls.

Intelligent & Easy Operation for Low Maintenance and Labor Costs

The centralized intelligent electric control system supports one-key synchronous lifting/lowering of the whole frame and independent zoning adjustment with user-friendly operation logic, operable by a single worker. The mature and stable mechanical structure features low failure rates and simple daily maintenance, drastically cutting later operation and maintenance investment.

• Traditional floor-standing scaffolding: Diversified and massive material consumption; full manual layer-by-layer erection and dismantling leads to long construction periods and high high-altitude operation risks. It occupies large site space with messy layout, and cumulative material wear pushes up rising overall comprehensive costs year by year

• Cantilever scaffolding: Repeated layer-by-layer assembly and disassembly bring tedious procedures and heavy labor input. Steel tubes suffer severe wear after multiple turnover cycles, and frequent high-altitude operations trigger numerous safety hazards. Cumulative costs of materials and labor remain high for long-term construction

• Intelligent Attached Lifting Scaffold: One-time assembly on the ground floor with full-process mechanized automatic lifting, no repeated erection or dismantling needed. Equipped with fully enclosed three-dimensional safety protection and full-time intelligent monitoring systems, the reusable equipment with high residual value serves as the optimal scaffold solution for high-rise construction featuring safety, time efficiency, cost savings and easy management

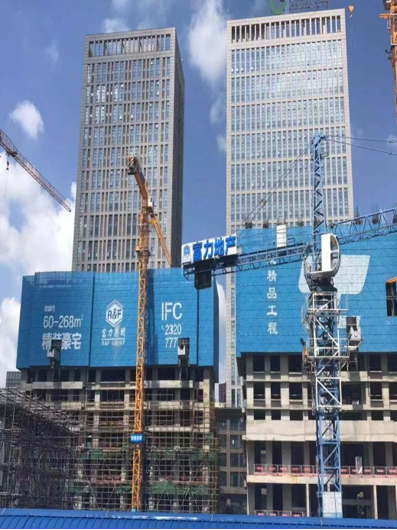

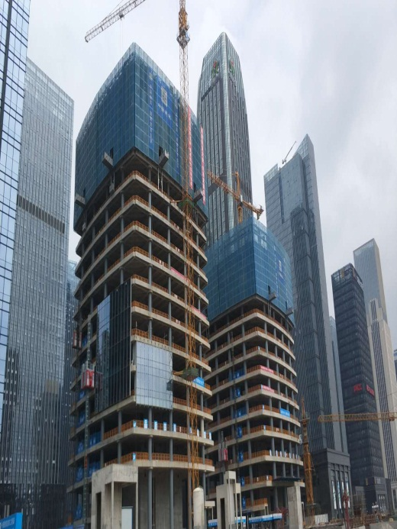

Widely applied to facade projects of high-rise & super high-rise residential buildings, government indemnificatory housing, talent apartments, urban commercial complexes, Grade-A office buildings, industrial parks, urban renewal projects and prefabricated buildings.

Covers all external wall construction procedures: steel bar binding, formwork work, concrete pouring, masonry, wall plastering, external thermal insulation, real stone paint coating, glass curtain wall and aluminum veneer installation.
