| As an innovative overhead construction solution, the Lightweight Residential Building Machine adopts modular steel structure and intelligent hydraulic lifting to realize automatic integral ascent without frequent tower crane cooperation.Equipped with complete safety enclosure and integrated formwork hanging structure, it delivers stable concrete forming quality and serves as core equipment for green construction and industrialized residential building. | |||||||||

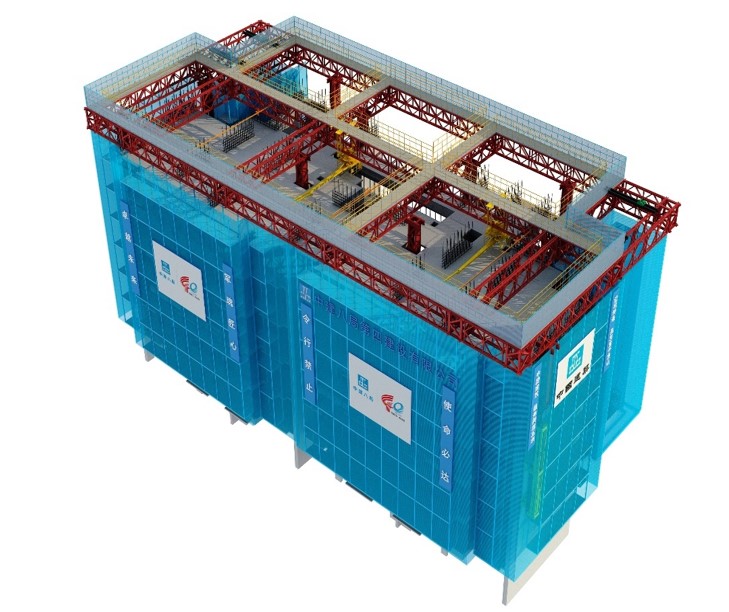

The lightweight residential building machine, also known as the dedicated intelligent building platform for residences, is a new generation of integrated prefabricated intelligent construction equipment specially developed for civil buildings such as high-rise commercial apartments, indemnificatory housing, western-style houses and mid-rise residential buildings. Integrating synchronous hydraulic jacking mechanisms, fully wrapped safety protection systems, heavy-duty modular steel working platforms, integrated formwork hanging structures and full-coverage intelligent safety monitoring modules, the equipment builds a self-lifting integrated "mobile aerial processing plant" above building floors.
Compared with scattered auxiliary construction facilities including traditional ground-mounted scaffolding and attached climbing frames, the lightweight building machine delivers an entirely enclosed working environment, synchronous hydraulic jacking for the whole machine, and parallel multi-process construction on multi-layer three-dimensional work surfaces. Its construction operation is barely affected by external weather such as wind, rain and high temperature. It comprehensively improves residential construction efficiency, high-altitude operation safety standards and concrete forming quality, and serves as a new core construction equipment vigorously promoted for construction industrialization, green civilized construction sites and smart site development.

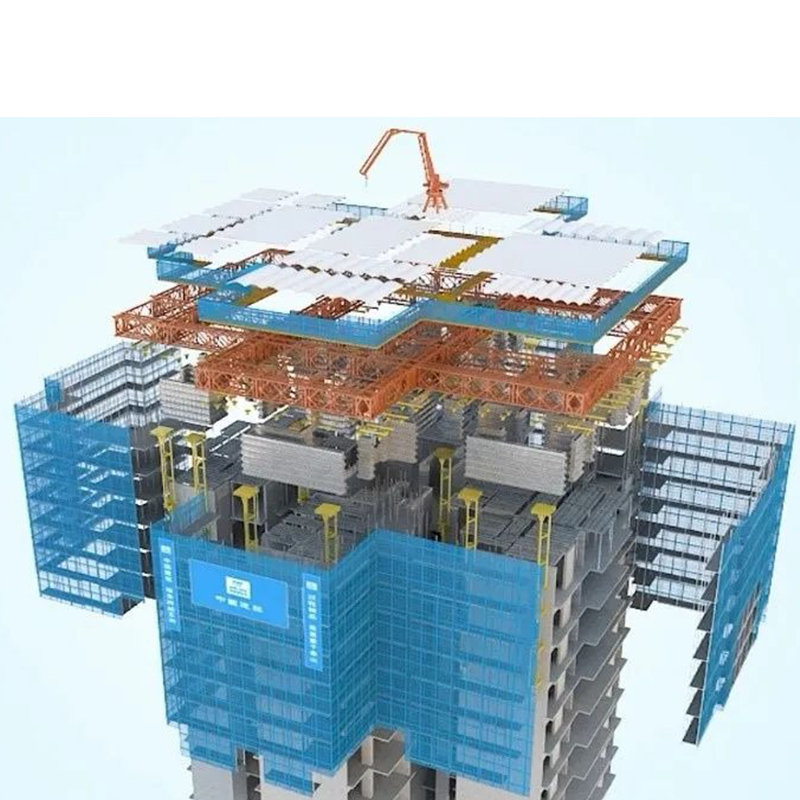

1. Long-span heavy-load main load-bearing steel structure working platform
2. Multi-cylinder synchronous intelligent hydraulic jacking drive system
3. Integrated structure for wall attachment anchoring, force bearing and load relief
4. Multi-layer surrounding fully enclosed safety hanging frame
5. Adjustable integrated formwork hanging and fixing assembly
6. Real-time online intelligent safety monitoring system + multi-limit sound-light alarm devices
7. Integrated supporting modules: rain and sun shelter, special material storage area, small mechanized auxiliary operation mechanism
1. Applicable Building Types: High-rise commercial apartments, indemnificatory housing, mid-rise western-style houses, fully prefabricated standard residences
2. Jacking Drive Form: Linked multiple hydraulic cylinders, electrically controlled balanced synchronous jacking with controllable height error
3. Jacking Efficiency: The whole machine can complete jacking for a single floor rapidly with short single jacking time, occupying no tower crane resources
4. Working Coverage: One-time erection covers multi-layer three-dimensional construction operation surfaces
5. Main Structural Material: Integrally welded high-strength alloy structural steel with surface anti-corrosion treatment, resistant to erosion from rainwater and construction dust
6. Safety Protection Configuration: Fully enclosed punched steel plate enclosure plus double-layer progressive safety protection structure
7. Intelligent Control System: Centralized integrated electric control console supporting one-key synchronous jacking of the whole machine and real-time visual monitoring of lifting data
8. Applicable Building Structures: Universal for mainstream shear wall residences and high-rise buildings with standard house types
1. Three-Dimensional Parallel Construction Greatly Shortens Overall Project Duration
Integrated with full-process operation carriers, the equipment allows simultaneous layered execution of steel bar binding, formwork erection, concrete pouring, masonry plastering and wall maintenance. It completely eliminates the cumbersome layer-by-layer erection and dismantling procedures of traditional facilities, lifting the overall main structure construction efficiency by more than 30%, effectively shortening the construction cycle and accelerating capital recovery of real estate projects.
2. Full-Coverage Enclosed Protection Builds Comprehensive Safety Barriers for High-Altitude Work
The whole machine is surrounded by a complete closed protective structure, fundamentally avoiding risks of falling building materials, tools and personnel slips, and greatly reducing safety hazards under strong wind and heavy rain. Equipped with multiple mechanical self-locking devices, travel limiters, overload early warning and sound-light alarm safety components, it automatically monitors operating status around the clock and fully complies with standardized construction safety acceptance specifications issued by housing and urban-rural development authorities.
3. Lightweight Specialized R&D Precisely Matches Load Standards of Residential Buildings
Compared with oversized heavy industrial building equipment, this model features lighter dead weight, compact structure and simple on-site assembly procedures. Its procurement and operation costs better fit the budget of housing construction projects. The force-bearing structure is optimized according to the load characteristics of residential shear walls, boasting wide adaptability to various house types and lowering the access threshold for small and medium-sized real estate projects.
4. Mechanization Replaces Manual Labor to Continuously Cut Comprehensive Labor Costs
Relying on automatic jacking and integrated hanging structures, it drastically reduces labor input for scaffolders and carpenters required in traditional construction, saving massive man-hours for frame disassembly and formwork transportation. The modular disassembled equipment can be recycled across multiple real estate projects, showing prominent comprehensive cost advantages for long-term use in contiguous mass residential developments.
5. Stable All-Weather Operation Free Construction Progress from Climate Restrictions
Equipped with an integrated rain and sun shelter and fully enclosed enclosures, the platform supports normal construction under harsh weather such as rainfall, strong wind and intense heat exposure. It effectively reduces construction shutdowns and delays to ensure all project construction milestones are delivered on schedule.
6. Consistent Casting & Forming Quality Reduces Post-Construction Repair and Rework
The main load-bearing platform features strong overall rigidity, and the matched integrated formwork hanging system delivers stable fixation, avoiding quality problems such as formwork shifting, mortar leakage at joints and wall vertical deviation during construction. The cast concrete walls are flat with regular edges and corners, greatly cutting material and labor losses caused by later wall repair and polishing rework.
7. Neat and Intensive Construction Site Facilitates Green and Smart Site Establishment
No massive stacking of steel tubes, couplers and scattered frame materials is required on site. Construction dust and noise are effectively suppressed, keeping the construction site tidy and orderly. It can pass all special inspections including dust control, civilized construction site and smart site assessments at one go, significantly improving the external standardized construction image of projects.
8. Modular Assembly & Disassembly Design Enables Flexible Cross-Project Circulation
The whole machine adopts standard detachable module design with simple assembly, disassembly and transportation procedures. The complete set of equipment suffers no irreversible wear, and can be transported to other residential projects for cyclic use after project completion, retaining considerable residual value for long-term application.
High-rise commercial apartments, government indemnificatory housing, old-town renovation residential buildings, prefabricated standard residences, low-density western-style house communities, county-level contiguous mass housing construction projects. It can be adopted by all general construction contractors as special complete supporting construction equipment for standardized residential projects.
